Wiring in the real simulator — live CARLA on the AGL dashboard

1. The bridge — two processes, by necessity

Because CARLA's Python (3.7) and ROS2's Python (3.11) can't share a process, the bridge is split in two, communicating over a local UDP socket:

Start CARLA headless — the same no-GPU launch from community bonding:

cd ~/carla-sim && ./CarlaUE4.sh -RenderOffScreen -nosound -carla-rpc-port=2000

2. Three bugs between here and live data

Starting the bridge the instant port 2000 appeared gave:

RuntimeError: time-out of 20000ms while waiting for the simulator

CARLA opens its port before it can actually answer API calls. Fix wait until the port is up, then ~30 s more:

until ss -ltn | grep -q ":2000"; do sleep 2; done; sleep 25

The ego car spawned, but enabling autopilot crashed:

RuntimeError: trying to create rpc server for traffic manager;
but the system failed to create because of bind error.

CARLA's Traffic Manager (which drives autopilot vehicles) opens its own server on port 8000 — the exact port I'd used for the HTTP file server in Week 1. Two servers, one port. Fix free port 8000 (use a different port for file transfer, e.g. 8001):

pkill -f "http.server 8000"

Each crashed attempt above had spawned a car before dying, and never cleaned it up. After a few tries:

RuntimeError: Spawn failed because of collision at spawn position

Fix harden the spawn logic — destroy existing vehicles first, then try spawn points until one is free (try_spawn_actor returns None on collision instead of raising):

for a in world.get_actors().filter('vehicle.*'):
    try: a.destroy()
    except Exception: pass
spawns = world.get_map().get_spawn_points(); random.shuffle(spawns)
ego = None
for sp in spawns:
    ego = world.try_spawn_actor(bp, sp)
    if ego: break
ego.set_autopilot(True)

3. Real data on the wire

With all three fixed, both halves of the bridge come up:

conda activate carla && python -u ~/carla-bridge/carla_to_udp.py
spawned ego: vehicle.tesla.model3 id 25

conda activate ros2  && python -u ~/carla-bridge/udp_to_ros2.py
[carla_odom_bridge]: publishing /carla/odom

Confirm the topic carries real coordinates, at the right rate:

ros2 topic hz /carla/odom
average rate: 19.86   # ~20 Hz — matches the project's sensor spec

4. The result — AGL tracking a self-driving car

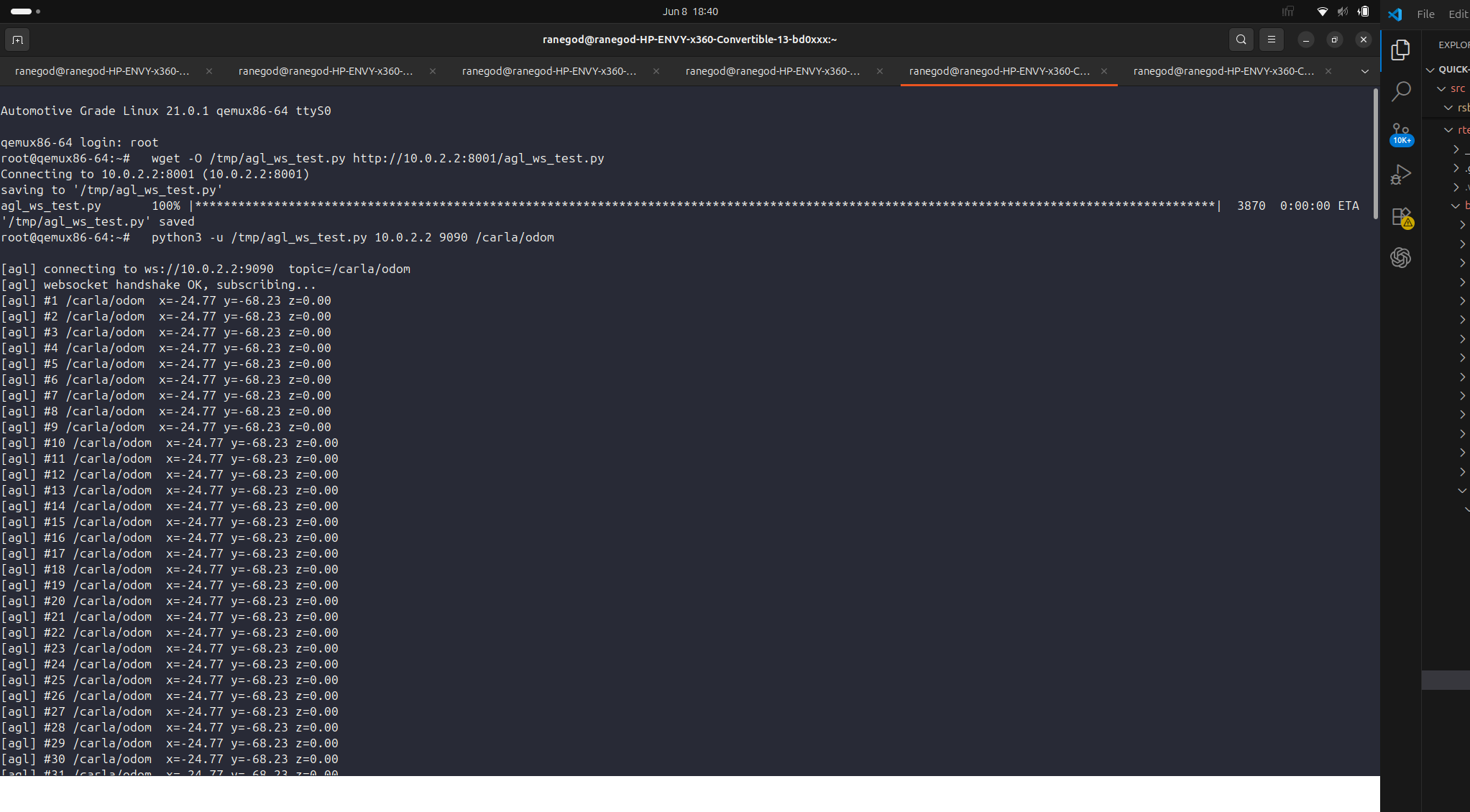

Same client, same AGL VM, real data. The dashboard now prints the position of an autonomous car driving itself around the CARLA map — and the numbers change as it moves:

root@qemux86-64:~# python3 -u /tmp/agl_ws_test.py 10.0.2.2 9090 /carla/odom
[agl] #150 /carla/odom  x=2.57  y=133.72 z=0.00
[agl] #312 /carla/odom  x=-2.65 y=133.69 z=0.00
[agl] #629 /carla/odom  x=-3.60 y=133.68 z=0.00   # ← x decreasing: the car is driving

The pieces, and where each runs

5. What's next

Week 2 proves the transport — the foundation the visualization sits on. Two things build on top of it:

• Build the HMI application. Replace the standard-library test client with the real AGL bird's-eye-view application — a dashboard app that connects to rosbridge and renders the detections on screen.
• The LiDAR perception pipeline. The heart of the project — CARLA LiDAR → a PCL perception node → 3D object detections. CARLA's LiDAR is ray-cast on the GPU, so that stage moves to a machine with a real graphics card; the rosbridge transport built here stays identical regardless of what's publishing.
