Week 13: From points to objects, the perception step that finds the cars

TL;DR I ran a PCL perception node over the recorded CARLA LiDAR stream. It downsamples the cloud, segments out the ground plane with RANSAC, and clusters the remaining points into 3D bounding boxes, finding between nine and sixteen objects per frame. I rendered its output as a top-down bird's-eye view, so the detections are visible as green boxes around the ego vehicle. It runs fully offline from the recorded bag, on a server with no display, no live simulator, and no GPU. One honest note at the end about what a box does and does not mean.

1. What perception means here

A LiDAR sensor returns tens of thousands of points per spin. That is not yet information a car can act on. Perception is the step that turns those points into objects: instead of twenty-two thousand distances, a short list that says there is something roughly car-shaped here, and something else there. That list, with a box around each thing, is what a planner or a dashboard actually consumes.

The classic way to do this without any machine learning is geometric, and it is what runs here: remove the ground so objects stop being glued to it, then group the leftover points by proximity. Points that sit close together belong to the same thing. Each group becomes one detection.

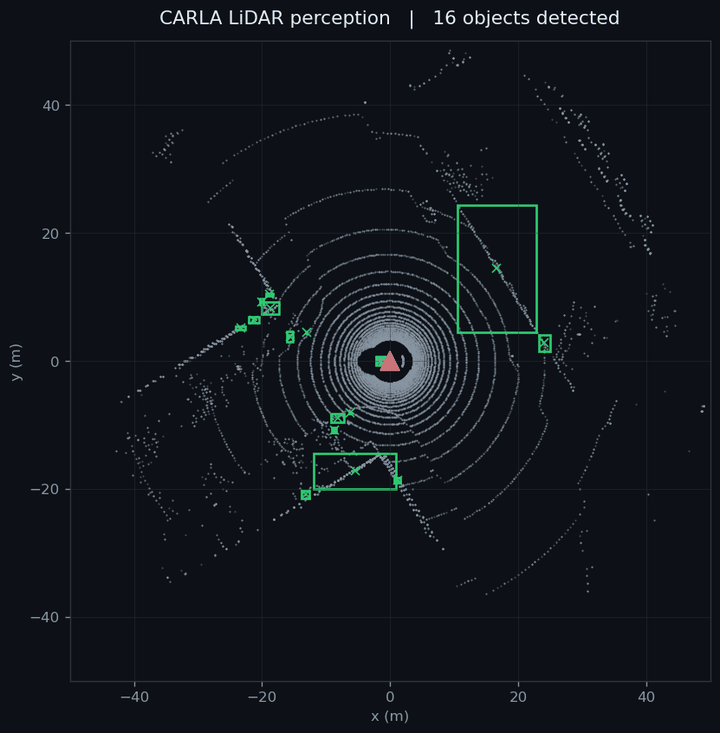

A looping bird's-eye animation of the CARLA LiDAR perception output. Grey points form concentric LiDAR rings around a red ego-vehicle marker at the centre. Green rectangles mark detected object clusters, changing frame to frame as the recorded scene plays. — The perception output, looping. Grey points are the raw CARLA LiDAR cloud; the red triangle at the origin is the ego vehicle carrying the sensor; each green box is one detected object cluster. Thirteen frames of the recorded bag, played in order. The object count in the title changes frame to frame as things come in and out of range.

2. The pipeline that finds the boxes

The detector is a small C++ node built on PCL, the Point Cloud Library. It subscribes to the raw /carla/lidar cloud and, for every frame, runs a fixed sequence of filters. Each stage exists to make the next one cheaper or cleaner.

// the perception pipeline, one frame at a time
VoxelGrid          leaf 0.2 m      // thin ~22k points down to a manageable set
PassThrough  z in [-2.0, 3.0] m    // keep only the slab around the road
RANSAC plane   dist 0.3 m          // find the ground and remove it
Euclidean clustering               // group the rest by proximity:
   tolerance 0.6 m, min 15 pts     //   near points = the same object
// each surviving cluster -> an axis-aligned 3D bounding box

The two stages that matter most are the ground removal and the clustering. Removing the ground is what lets clustering work at all: while every point is connected through the road surface, proximity grouping just returns one giant blob. RANSAC fits the largest flat plane in the slab, which is the road, and drops those points. What remains are the things standing on the road. Euclidean clustering then walks that remainder and joins any points within sixty centimetres of each other into one object, and anything with at least fifteen points becomes a detection with a box.

The node publishes each frame's boxes twice: as visualization_msgs/MarkerArray for viewers, and as vision_msgs/Detection3DArray, the standard message other ROS perception code expects, so the detections can feed a next stage later.

3. Seeing it, with no screen

The server that runs CARLA has no display, so the usual ROS visualiser was not an option. Instead I wrote a small headless renderer that subscribes to the same two topics, the raw cloud and the detector's boxes, and draws a top-down view straight to an image file. No display, no GPU, just points and rectangles rendered to a PNG per frame.

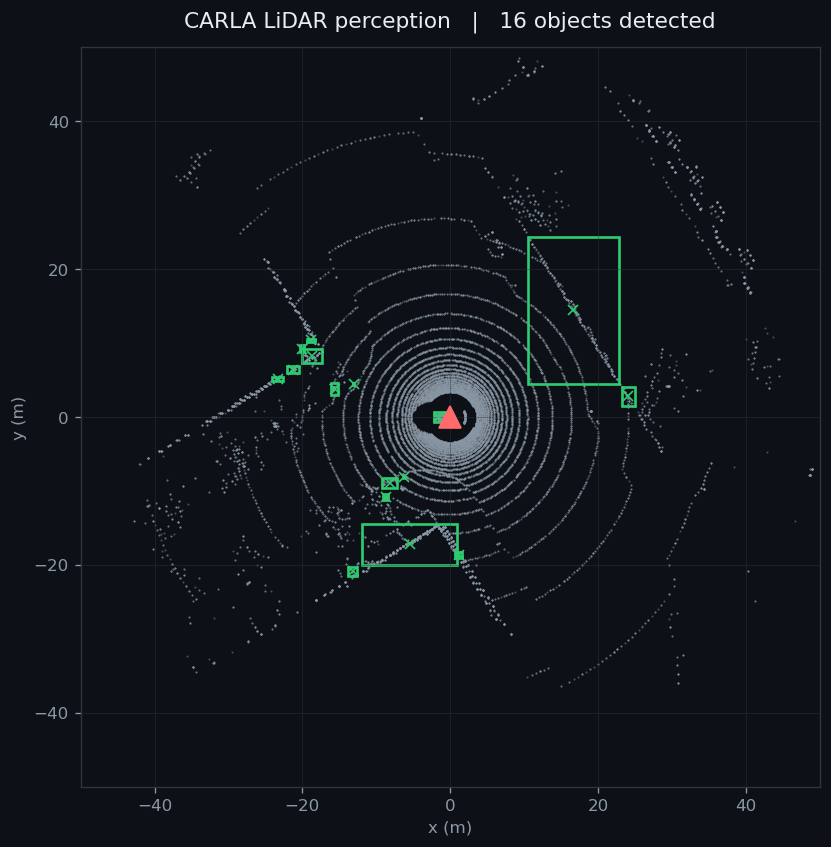

A single bird's-eye frame of the perception output. Concentric grey LiDAR rings surround a red ego-vehicle triangle at the origin. Green boxes with cross-marks label sixteen detected clusters, including a clear car-sized box below the ego vehicle and a larger box to the upper right. — A single frame, sixteen objects. The concentric rings are the LiDAR sweep hitting the flat road at increasing distance. Notice the clean car-sized box just below the ego vehicle, and a much larger box to the upper right, which is a stretch of roadside wall, not a vehicle. More on that below.

4. Reproduce it

The whole thing runs offline against the recorded bag, in the ROS 2 Humble environment. Three processes: the detector, the renderer, and the bag playback.

# in the ROS 2 (Humble) environment, with the workspace sourced
source ~/perception_ws/install/setup.bash

# 1. the perception node: /carla/lidar -> /carla/detections
ros2 run lidar_detector lidar_detector

# 2. a headless bird's-eye renderer: points + boxes -> one PNG per frame
python bev_render.py

# 3. replay the recorded CARLA LiDAR bag onto /carla/lidar
ros2 bag play ~/carla-bridge/carla_lidar

# the PNG frames are then stitched into the looping animation above

One practical detail worth recording: the capture for the animation ran on its own ROS_DOMAIN_ID, isolated from a background bag player that was already looping the same recording on the default domain. Without that isolation the detector sees two copies of the stream interleaved, and the frames come out doubled and out of order. On a separate domain the playback is clean, one frame per message, in order.

5. What a box does, and does not, mean

It is worth being precise about the claim, because it is easy to oversell this. The node detects clusters, not labelled objects. When the title says sixteen objects, it means sixteen groups of points that stand apart from the ground and from each other. It does not mean sixteen cars.

Honest scope There is no classification here and no comparison against ground truth. A box means points clustered together, so a car, a pedestrian, a pole, and a run of roadside wall all come back as boxes, and the large box in the still is exactly that, a wall rather than a vehicle. That is the correct next step: filter clusters by size, and add a classifier that says what each box actually is. This week proves the geometry works. Naming the objects comes after.

6. Where it stands, and what's next

Status: the pipeline now has a real perception stage. The raw CARLA LiDAR cloud is segmented and clustered into 3D bounding boxes in real time, published on the standard vision_msgs topic, and visible as a bird's-eye animation, all running offline from the recorded bag.

Filter the clusters. Drop boxes that are too large or too flat to be a vehicle or a person, so walls and ground scraps stop being reported as objects.
Name them. Add a classification step so a box is not just an obstacle but a car, a pedestrian, or a cyclist, which is the embedded-perception goal the project is aimed at.
Draw the boxes in the dashboard. The detections already publish on a ROS topic the HMI can read. The next move is to render these boxes over the point cloud in the AGL Flutter dashboard itself, not only in this offline view.

Week 12 made the dashboard packageable and got it reviewed. This week gave the pipeline something worth drawing: not just points, but objects.
